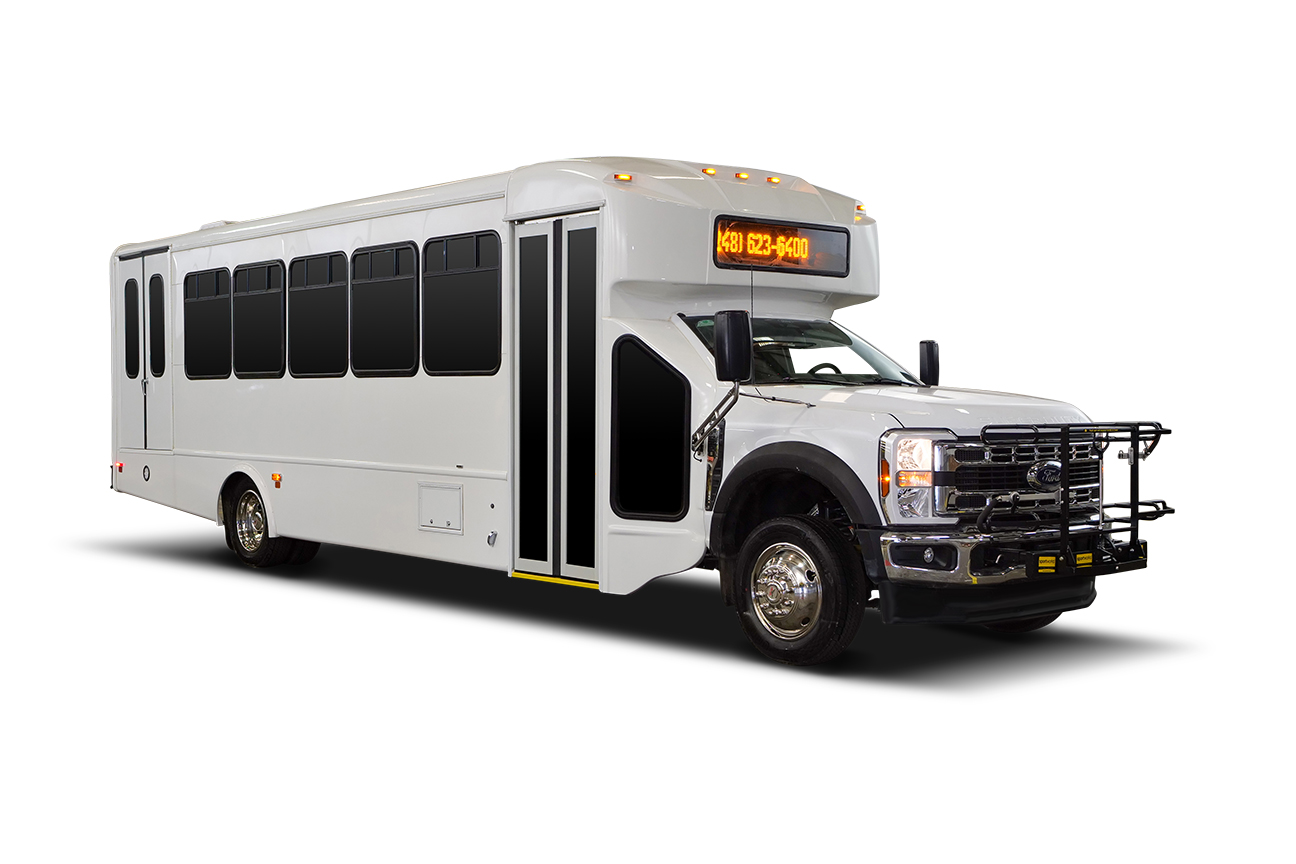

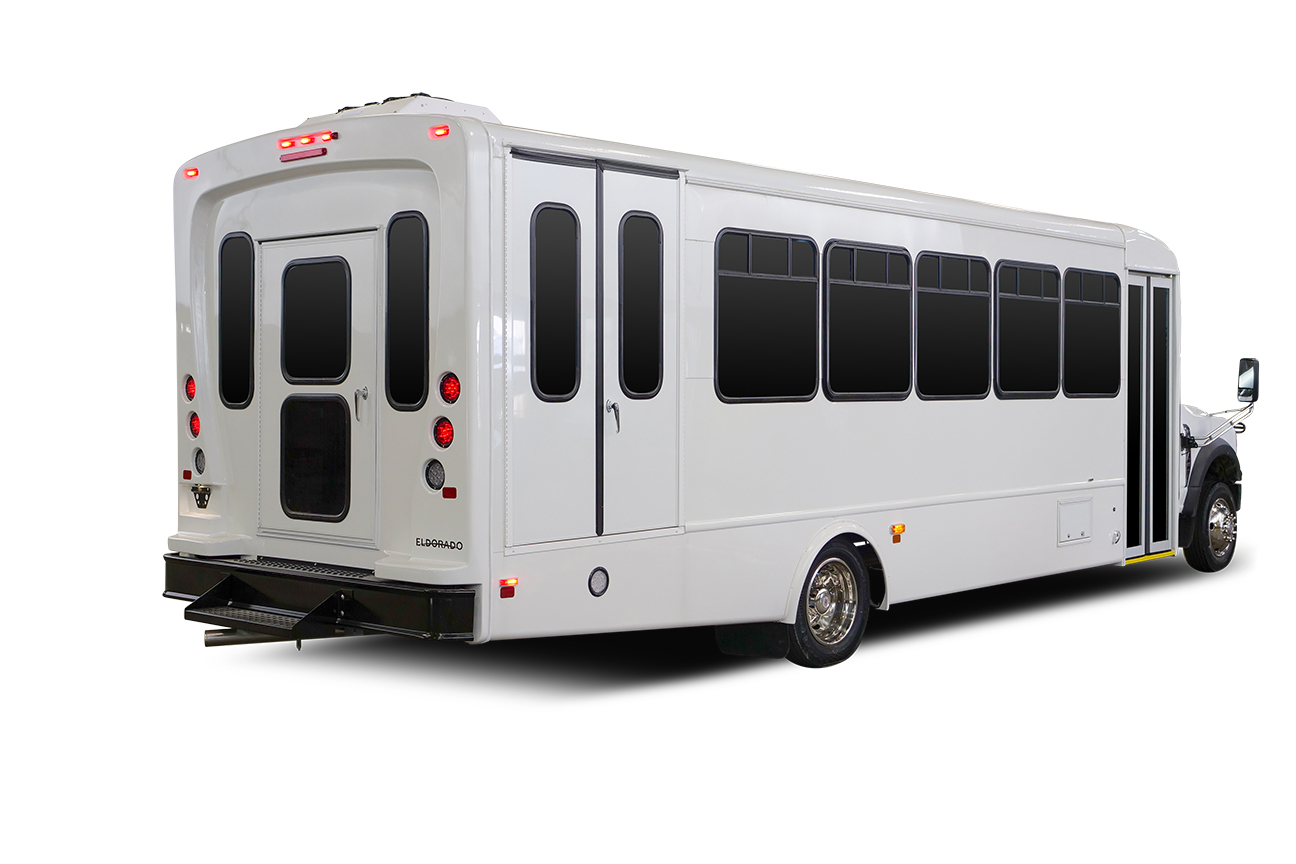

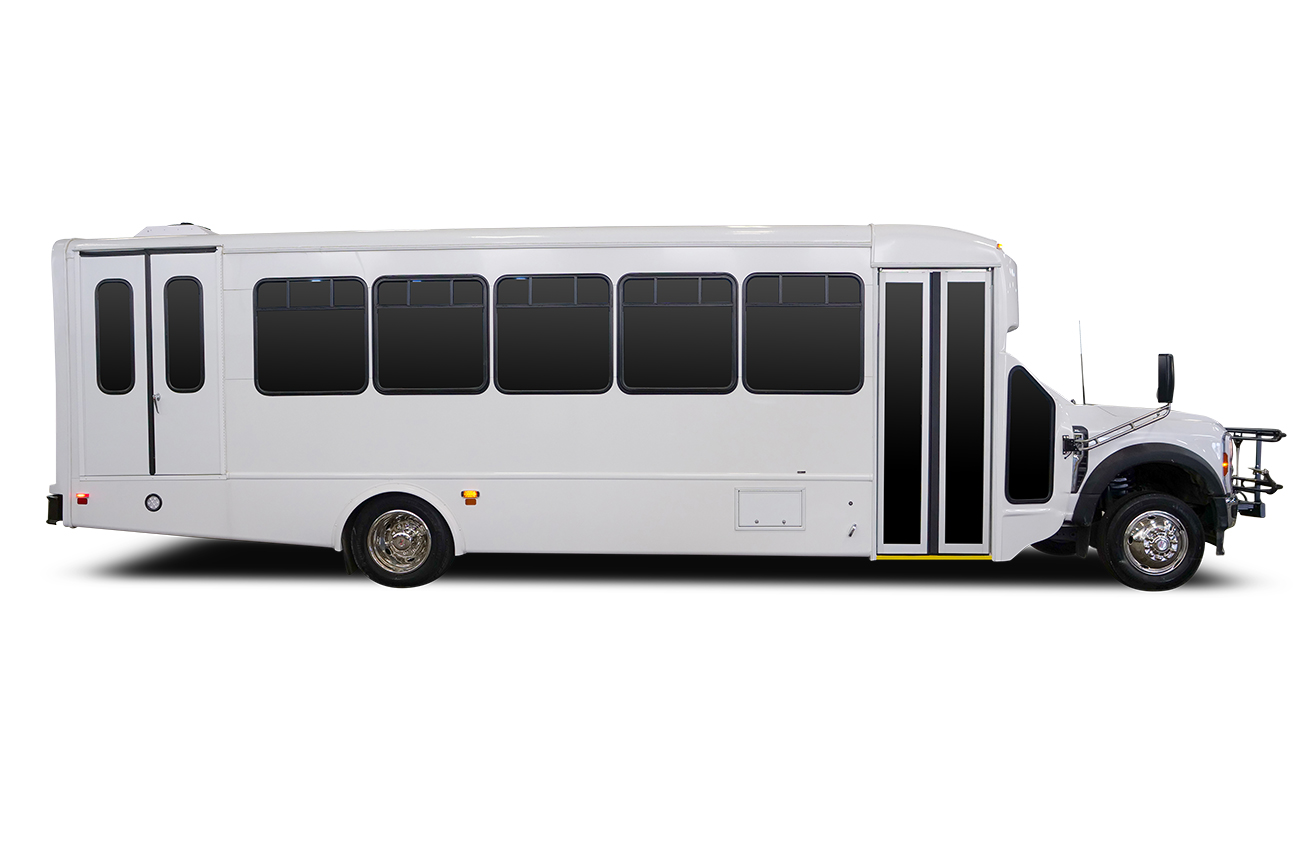

ElDorado Advantage XL F550

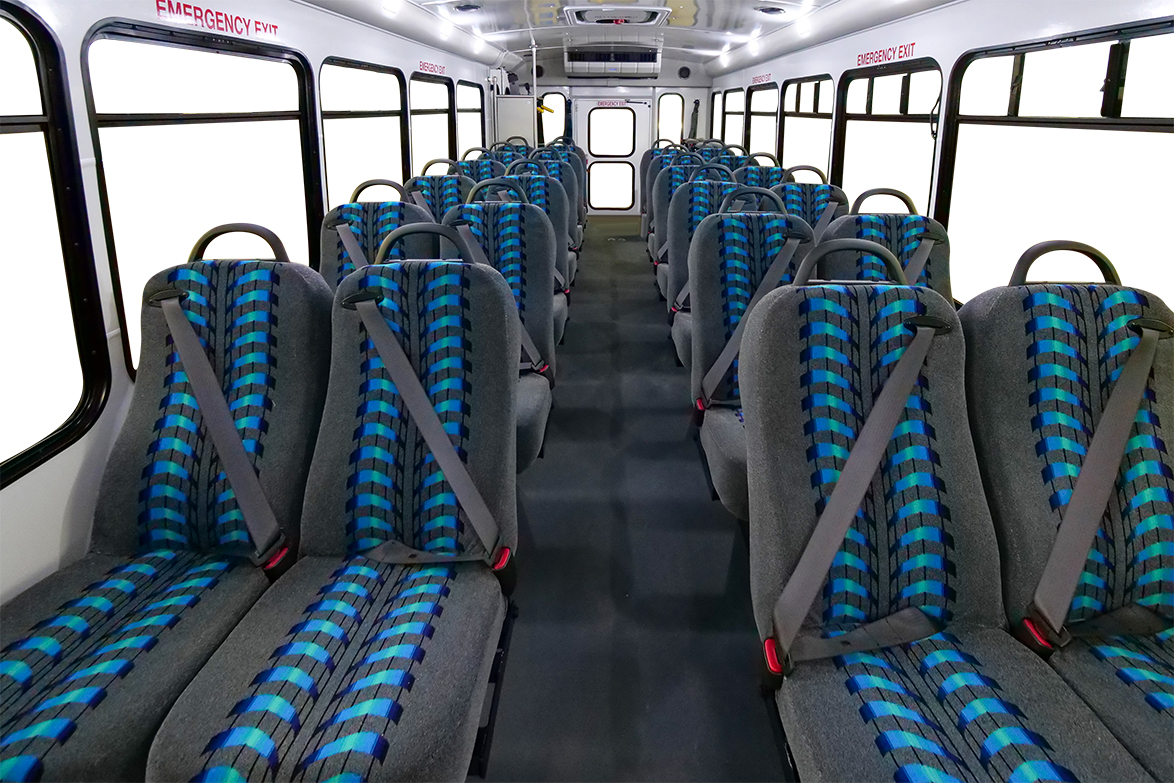

The XL, one of ElDorado’s larger shuttle buses, utilizes straight side wall construction and features a wide aisle to maximize shoulder space, offering a spacious and comfortable experience for your passengers. The XL is engineered to accommodate a variety of seating arrangements including wheelchair accessibility and numerous storage options for luggage. Finally, with its rock-solid steel frame cage the XL is truly designed for passenger comfort and safety.
Passenger Capacity
Up to 33
Bus Length
28′ – 32′
Chassis
Ford® F550
Wheelbase
205″, 217″, 238″
Engine
7.3L Gas/6.7L Diesel
GVWR
19,500 lbs.
Overall Width
96″
Interior Width
93″
Ground To Int. Floor
30.5″
Overall Height
123″
Interior Height
78″
Ground To 1st Step
10.5″
Step Riser
10″
Step Tread
11.5″
Step Width
35.75″
Entry Door Clear Opening With One Grab Rail
31″
Entry Door Clear Opening With Two Grab Rails
30″
Explore 3D Space
Floorplans

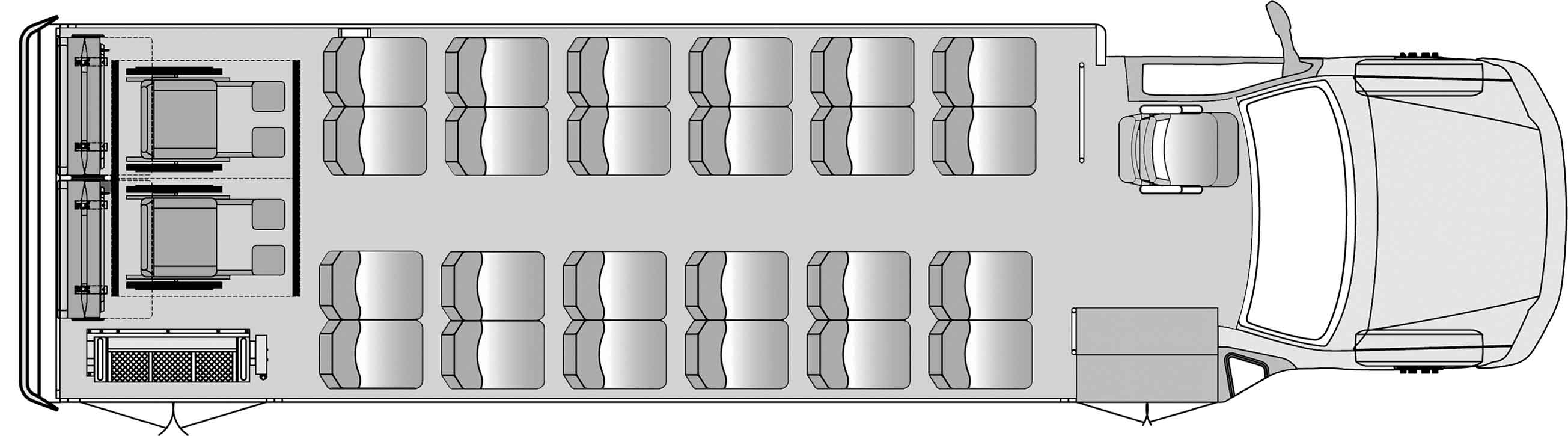

24 Passenger 2 Wheelchair With Flip Seats Plus Driver

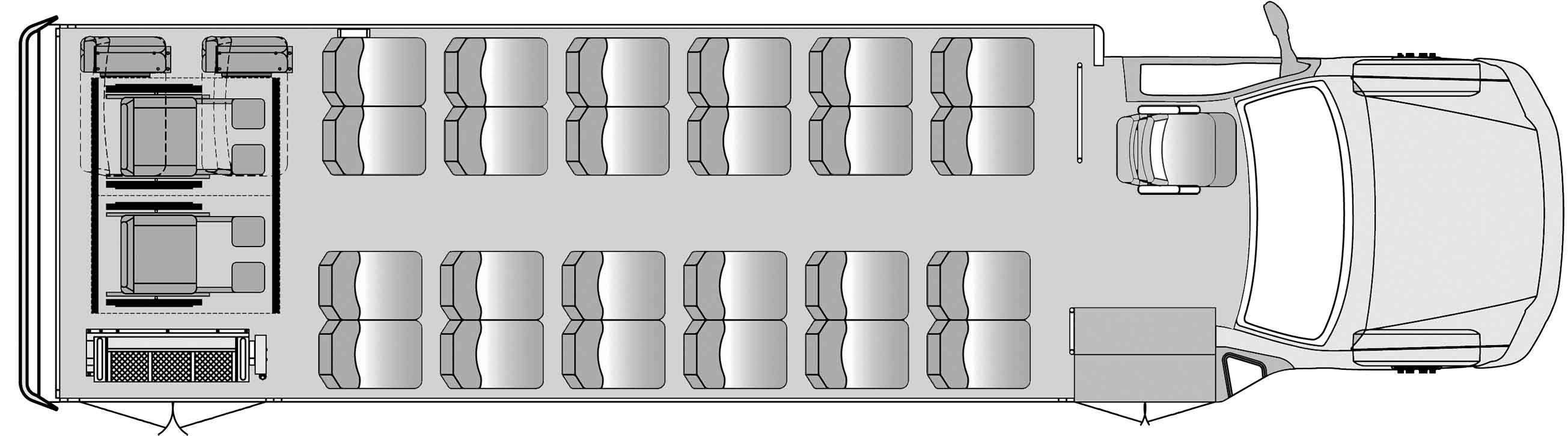

24 Passenger 2 Wheelchair With Foldaway Seats Plus Driver

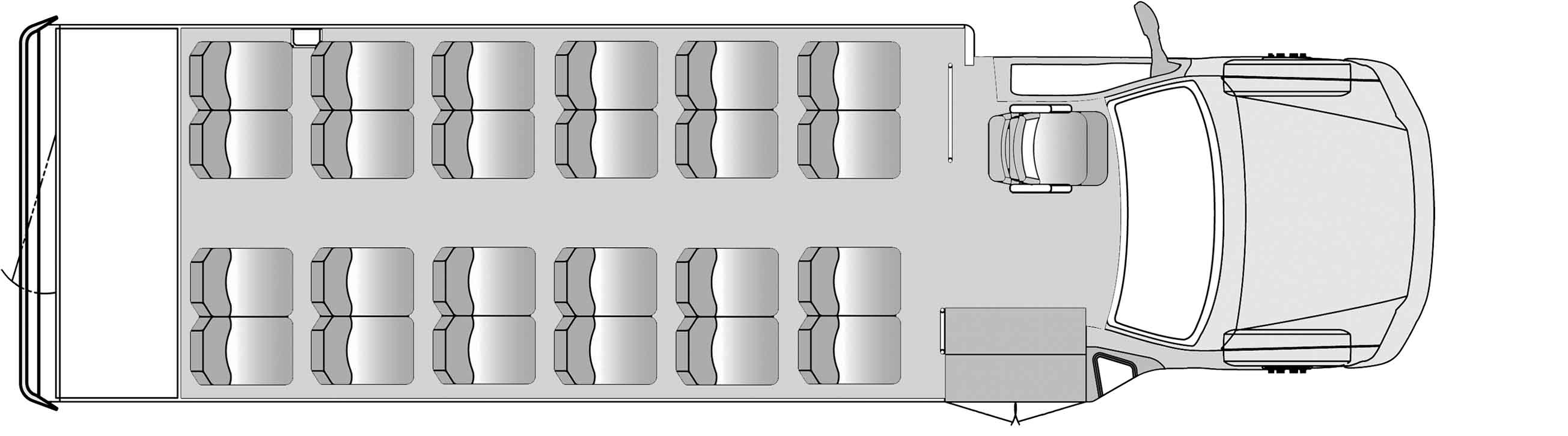

24 Passenger with Rear Luggage Plus Driver

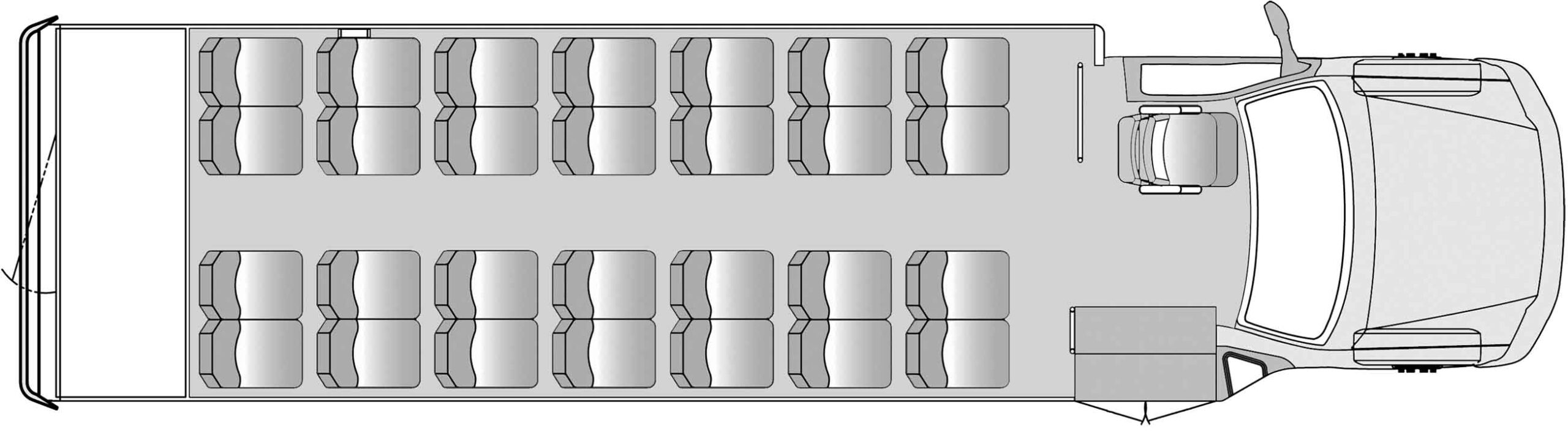

28 Passenger with Rear Luggage Plus Driver
29 Passenger Plus Driver

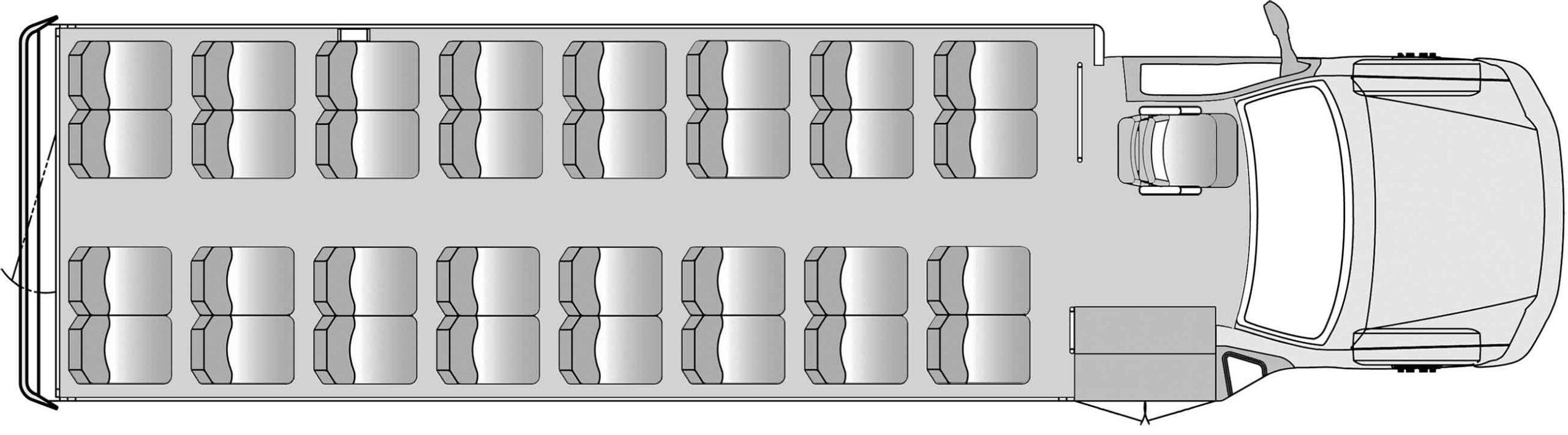

32 Passenger Plus Driver
Features & Options
Standard Features
Safety Options
Performance Options
Appearance Options
Comfort & Convenience Options
Brochure
Standard Features
- LED Exterior Lighting Including: 5 Front Amber, 7 Rear Red, Red Stop/Tail and Turn Signal, Backup Clear, Tag Light
- Rosco Accustyle Manual Exterior Breakaway Mirrors
- One Piece Fiberglass Front Cap
- One Piece Fiberglass Rear Cap with Anti-ride Feature and 30″ X 48″ Nominal Rear Egress Window
- Heavy Die-Formed, Black Powder Coated, Steel Bumper
- Exterior Graphics Package; Blue, Burgundy or Green
- Grey Padded Vinyl Driver Overhead Panel, Electrical Cover Panel, Access Door, Entry Door and B Pillar Covering
- Seaspray Fabric Covered Ceiling and Sidewalls
- Vandal Resistant FRP Above Seat Track to the Transition Panel
- Interior LED Lighting: Passenger Dome Lights (Qty. Pending Length of Vehicle), Driver’s Dome, Entry Stepwell Lights
- 5/8″ THICK PLYWOOD OVER FLOOR STEEL STRUCTURE
- Graphite (Black) Gerflor Flooring with White Step Nosing
- Left Hand Entry Vertical Stainless Steel Grab Rail. Stainless Steel Stanchion with Grey Padded Modesty Panel
- 36″ X 36″ Upper T-Slide Windows Tinted to FMVSS Compliance
- 36″ Electric Entry Door
- Streetside Exhaust
- Rear Mud Flaps
- Battery Box with Steel Tray (Gas Chassis Only)
Safety Options
- 5 lb. Fire Extinguisher – 8089
- 16 Unit First Aid Kit – 8090
- Amerex Fire Suppression – 20261
- Belt Cutter – 8179
- Ceiling Grab Rail – 20296
- Crossover Mirror Front Curbside – 20279
- Emergency Triangle Kit – 8091
- Extra Egress Window – 20188
- Fresnel Wide Angle Lens – 20278
- Grey Stanchion Padding – 20304
- Interior Convex Mirror 6×9 – 20276
- Rear Emergency Door Right Hinge – 8016
- Rear Emergency Exit Left Hinge – 8016
- Red Emergency Exit Light – 8155
- Red Interior Door Handle – 20190
- Right Hand Entry Vertical Grab – 8049
- Roof Hatch – 8017
- Rotary Disconnect Switch – 22092
- Stop Request Single Display Sign – 22094
- Yellow Overhead Grabs – 20297
- Yellow Powder Coated Entry Grab – 20299
- Yellow Powder Coated Stanchion Assemblied – 20302
- Yellow Standee Line – 8802
- Yellow Step Nosing – 22016
Performance Options
- MorRyde RL Suspension
- Telma Brake Retarder – 22031
- Fast Idle Intermotive GTWY
Appearance Options
-
- Custom Paint – 22021
- Additional Window for Rear Door – 8682
- Twin Windows on Sides of Rear Door – 20175
- Bonded Window – 20187
- Gloss Blackout Window – 22023
- Solid Windows – 20187
- Extra Egress Window – 20188
- Manual Passenger Door – 2056
- Gerflor Sirius #6727 Anthracite – 22383
- Altro Meta Storm – 22014
- Colored RCA Rubber Floor with Ribbed Aisle – 8047
- Cove Colored Flooring – 2238
- Black Padded Vinyl Interior – 2853
- FRP Ceiling – 2289
- Gerflor Gaya Wood – 2885
- Paint Skirt – 22022
- Romeo Rim Rear Bumper – 22034
- Stainless Steel Wheel Inserts – 22038
- Stainless Steel Rear Bumper – 2768
Comfort & Convenience Options
- Interior Luggage Rack – 20202
- Overhead Luggage Netting – 8816
- Overhead Luggage Rack – 8020
- Rear Luggage – 20203
- LED Center Brake Lights – 20136
- LED Mid-Ship Turn Marker Lights – 20138
- Strobe Light Roof Mount – 20140
- LED Dual Reading Lights in Overhead Luggage – 8812
- LED Overhead Strip Light – 8811
- OnSpot Chains – 2895
- Valve Stem Extender – 22040
- Laminated Wiring Schematic As-Built – 22101
- Heavy Duty Anti-Slip Driverside Running Board – 2623
- Diamond D Round Farebox – 20128
- Diamond NV Rectangular Farebox – 20126
- DL2 Powder Coated Bike Rack – 2206
- DL2 Stainless Steel Bike Rack – 2008
- Driver Stanchion Modesty Panel – 20301
- Tinted Plexiglass Upper Panel – 8146
- Driver Storage with Lock – 20192
- Electric Water Heater Shut Off Valves – 20089
- Exterior Passenger Entrance Door Key – 8133
- External Speaker Switch – 20162
- Fuel Access Plate – 22020
- Additional Vault – 20129
- AUX Heater 65K Under Seat – 20084
- Battery Box – 22087
- Defrost Fan – 20092
- Deluxe AM FM CD PA Ready – 8287
- 2 Way Radio Ground Plane – 20160
- Additional Speaker – 20157
- Hand Held Mic – 8139
- QStraint Belt STorage Pouch – 8102

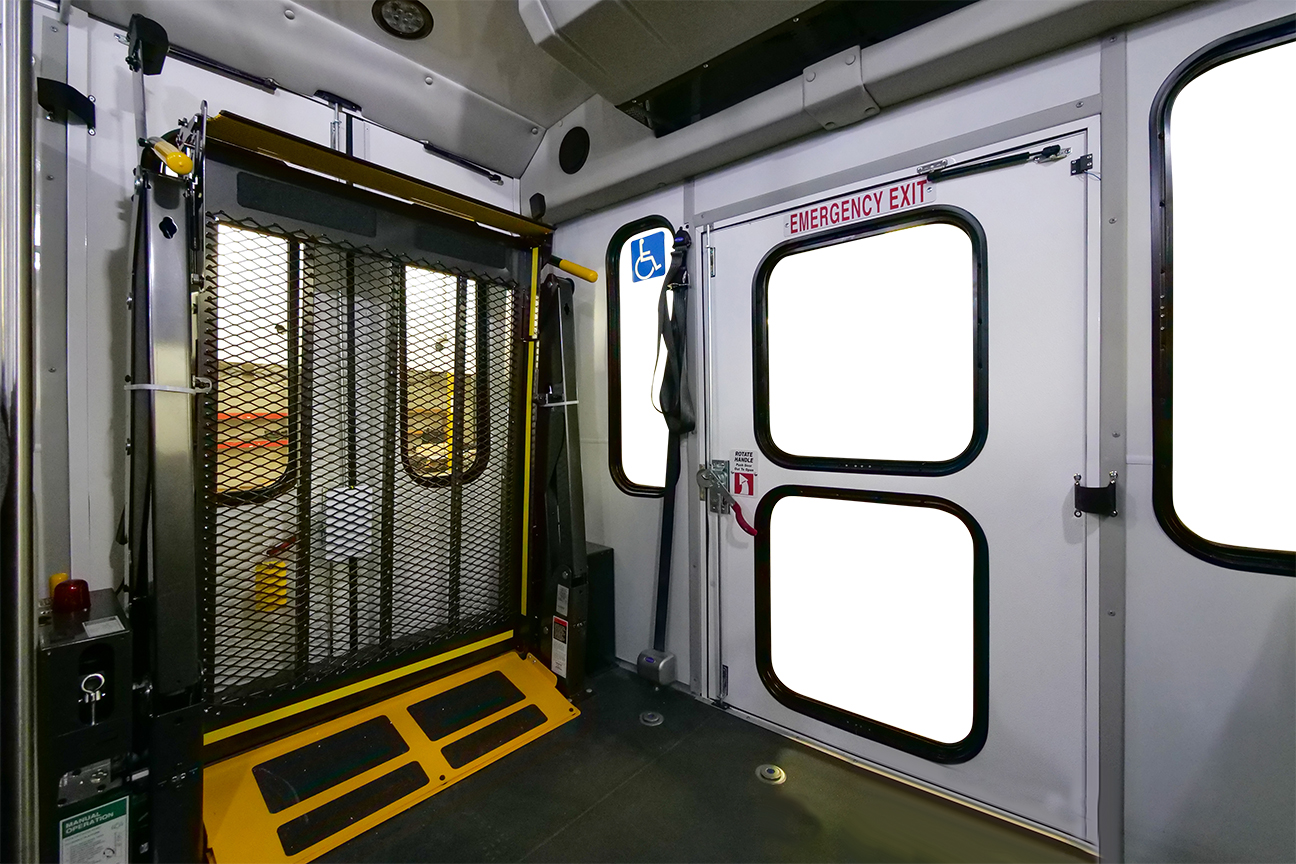

- Braun Lifts
- Freedman Seating
