ElDorado Advance Ford® E350
The Advance E350 narrow body and small turning radius, allow for easier handing, which will be welcomed by your drivers. In addition, passengers will appreciate the wide entry door and deep steps when entering and exiting the vehicle. The Advance E350 is the perfect solution for those in the market for a smaller shuttle bus or alternative to a raised roof van.
Passenger Capacity
Up to 16
Bus Length
20′ – 22′
Chassis
Ford® E350
Wheelbase
138″
Engine
7.3L Gas
GVWR
11,500 and 12,500 lbs.
Overall Width
84″
Interior Width
81″
Ground To Int. Floor
30.75″
Overall Height
112″
Interior Height
77″
Ground To 1st Step
11.5″
Step Riser
9.75″
Step Tread
9.5″
Step Width
35.75″
Entry Door Clear Opening With One Grab Rail
31″
Entry Door Clear Opening With Two Grab Rails
30″
Floorplans

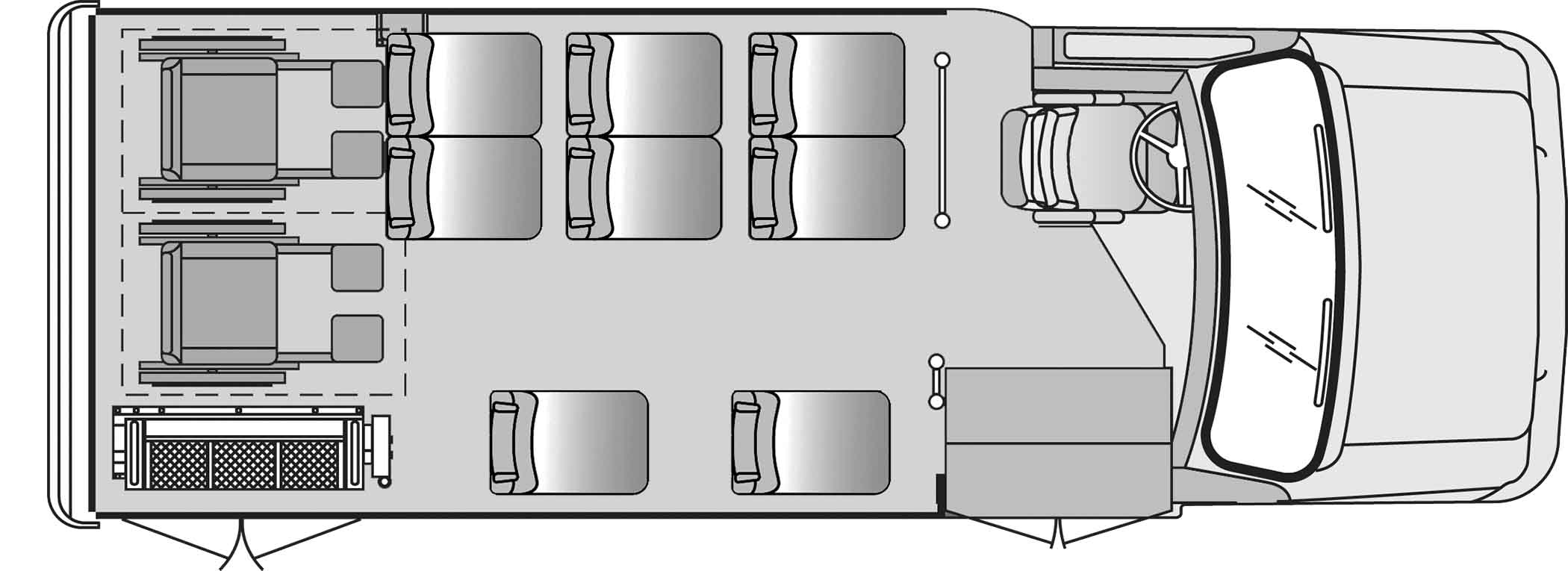

8 Passenger 2 Wheelchair Plus Driver

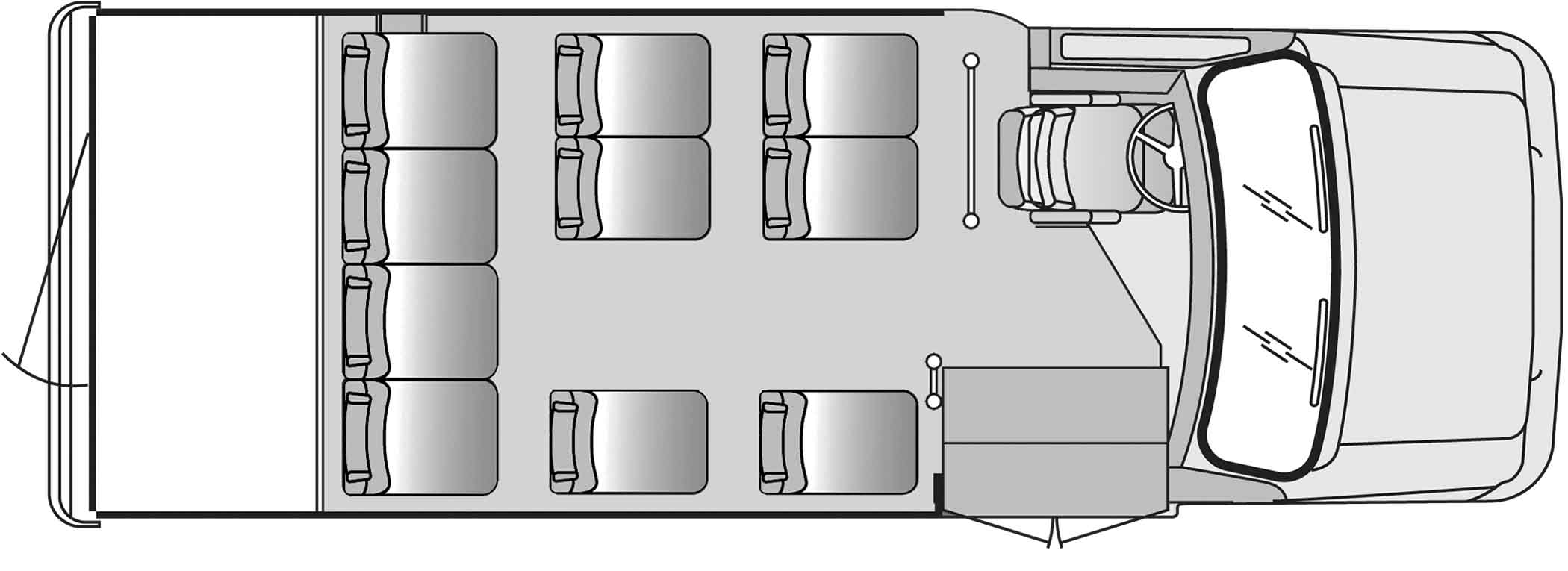

10 Passenger With Rear Luggage Plus Driver
13 Passenger Plus Driver And Copilot
Features & Options
Standard Features
Safety Options
Performance Options
Appearance Options
Comfort & Convenience Options
Brochure
Standard Features
- LED Exterior Lighting Including: 5 Front Amber, 7 Rear Red, Red Stop Top/Tail and Turn Signal, Backup Clear, Tag Light
- Rosco Accustyle Manual Exterior Breakaway Mirror
- One Piece Fiberglass Front Cap
- One Piece Fiberglass Rear Cap with Anti-Ride Feature and 30″ X 48″ Nominal Rear Egress Window
- Heavy Die-Formed, Black Powder Coated, Steel Bumper
- Exterior Graphics Package; Blue, Burgundy or Green
- Grey Padded Vinyl Driver Overhead Panel, Electrical Cover Panel, Access Door, Entry Door and B Pillar Covering
- Seaspray Fabric Covered Ceiling and Sidewalls
- Vandal Resistant FRP Above Seat Track to the Transition Panel
- Interior LED Lighting: Passenger Dome Lights (QTY Pending Length of Vehicle), Driver’s Dome, Entry Stepwell Lights
- 5/8″ Thick Plywood over Floor Steel Structure
- Graphite (Black) Gerflor Flooring with White Step Nosing
- Left Hand Entry Vertical Stainless Steel Grab Rail. Stainless Steel Stanchion with Grey Padded Modesty Panel
- 36″ X 36″ Upper T-Slide Windows Tinted to FMVSS Compliance
- 36″ Wide Clear Opening, Electric Entry Door (Front Lift 138″/139″ WB MODELS CAN ONLY USE 32″ WIDE CLEAR OPENING ENTRY DOOR)
- Rear Mud Flaps
Safety Options
- 5 lb. Fire Extinguisher – 8089
- 16 Unit First Aid Kit – 8090
- Amerex Fire Suppression – 20261
- Belt Cutter – 8179
- Ceiling Grab Rail – 20296
- Crossover Mirror Front Curbside – 20279
- Emergency Triangle Kit – 8091
- Extra Egress Window – 20188
- Fresnel Wide Angle Lens – 20278
- Grey Stanchion Padding – 20304
- Interior Convex Mirror 6×9 – 20276
- Rear Emergency Door Right Hinge – 8016
- Rear Emergency Exit Left Hinge – 8016
- Red Emergency Exit Light – 8155
- Red Interior Door Handle – 20190
- Right Hand Entry Vertical Grab – 8049
- Roof Hatch – 8017
- Rotary Disconnect Switch – 22092
- Stop Request Single Display Sign – 22094
- Yellow Overhead Grabs – 20297
- Yellow Powder Coated Entry Grab – 20299
- Yellow Powder Coated Stanchion Assemblied – 20302
- Yellow Standee Line – 8802
- Yellow Step Nosing – 22016
Performance Options
- MorRyde RL Suspension
- Telma Brake Retarder – 22031
- Fast Idle Intermotive GTWY
Appearance Options
-
- Custom Paint – 22021
- Additional Window for Rear Door – 8682
- Twin Windows on Sides of Rear Door – 20175
- Bonded Window – 20187
- Gloss Blackout Window – 22023
- Solid Windows – 20187
- Extra Egress Window – 20188
- Manual Passenger Door – 2056
- Gerflor Sirius #6727 Anthracite – 22383
- Altro Meta Storm – 22014
- Colored RCA Rubber Floor with Ribbed Aisle – 8047
- Cove Colored Flooring – 2238
- Black Padded Vinyl Interior – 2853
- FRP Ceiling – 2289
- Gerflor Gaya Wood – 2885
- Paint Skirt – 22022
- Romeo Rim Rear Bumper – 22034
- Stainless Steel Wheel Inserts – 22038
- Stainless Steel Rear Bumper – 2768
Comfort & Convenience Options
- Interior Luggage Rack – 20202
- Overhead Luggage Netting – 8816
- Overhead Luggage Rack – 8020
- Rear Luggage – 20203
- LED Center Brake Lights – 20136
- LED Mid-Ship Turn Marker Lights – 20138
- Strobe Light Roof Mount – 20140
- LED Dual Reading Lights in Overhead Luggage – 8812
- LED Overhead Strip Light – 8811
- OnSpot Chains – 2895
- Valve Stem Extender – 22040
- Laminated Wiring Schematic As-Built – 22101
- Heavy Duty Anti-Slip Driverside Running Board – 2623
- Diamond D Round Farebox – 20128
- Diamond NV Rectangular Farebox – 20126
- DL2 Powder Coated Bike Rack – 2206
- DL2 Stainless Steel Bike Rack – 2008
- Driver Stanchion Modesty Panel – 20301
- Tinted Plexiglass Upper Panel – 8146
- Driver Storage with Lock – 20192
- Electric Water Heater Shut Off Valves – 20089
- Exterior Passenger Entrance Door Key – 8133
- External Speaker Switch – 20162
- Fuel Access Plate – 22020
- Additional Vault – 20129
- AUX Heater 65K Under Seat – 20084
- Battery Box – 22087
- Defrost Fan – 20092
- Deluxe AM FM CD PA Ready – 8287
- 2 Way Radio Ground Plane – 20160
- Additional Speaker – 20157
- Hand Held Mic – 8139
- QStraint Belt STorage Pouch – 8102
- Braun Lifts
- Freedman Seating
